Home /Products/SMD LED Chip/High CRI 500mA LED Light Chip 202lm/W Water Resistant For Led Street Light Module

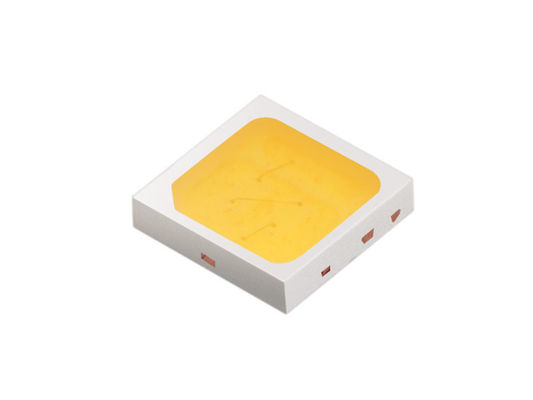

High CRI 500mA LED Light Chip 202lm/W Water Resistant For Led Street Light Module

Negotiable
MOQ
Negotiable
Price
High CRI 500mA LED Light Chip 202lm/W Water Resistant For Led Street Light Module
Features Gallery Product Description Request A Quote
Features
Specifications
Features: 1W
Single Light Effect: 202lm/W
Current: 500mA
Type: Led Street Light Module
Power: 30W 40W 50W 60W
Feature: Waterproof
Advantages: High CRI
Highlight:

High CRI LED Light Chip

,

500mA LED Light Chip

,

Water Resistant LED Light Chip
Basic Infomation
Place of Origin: Zhejiang,China
Brand Name: Kinglux
Certification: CE
Model Number: EMC3030-TH E30-TH
Payment & Shipping Terms
Payment Terms: L/C, T/T, Western Union, MoneyGram
Product Description

Waterproof High CRI 500mA SMD LED Chip 202lm/W Led Street Light Module



  • 1.1W Light effect test 202lm/W
    2. Adopt customized chip with good parameter consistency
    2. The finished product voltage can be controlled within 0.1V and the power amplitude within ±1%
    3. Single power up to 1.5W, transient current can withstand up to 500mA
    5.1:1 replaces EMC5050 light efficiency 190-210lm/w products to meet the whole lighting efficiency above 160lm/w

1. Adopting vertical chip packaging technology, with a maximum usage power of 3W
2. High color rendering and high-quality lighting, creating a light and color space that everyone loves for customers
3. Small size, high power, low color tolerance, providing customers with the best light source matching for linear lighting
4. The main colors are more market-oriented and have better color consistency



Characteristics And Uses of SMD LED Chip

SMD type LEDs are light sources that have the characteristic of being installed in circuits directly mounted on an electronic board. These circuits are perforated to allow the passage of the electrodes, whose welding is carried out on the lower face of the base. These are components where the electrodes do not protrude downwards, but come out from the sides of the chip. They are characterized by their flat shape: the lower part is welded directly on the electronic board, while the electrical connections are on the side. In this way it is possible to use printed circuits on an insulating base of reduced thickness and to carry out the micro-welding with automated machinery. This type of LED looks like a tiny box with one face from which the light is emitted, the opposite face which acts as a support base, while the remaining side faces are equipped with anode and cathode. In the past they have been used in miniature circuits, such as those of mobile phones, thanks to an ever higher luminous efficiency. Today they are widely used in the production of LED luminaires for general lighting. This type of LED normally has a light output of 120 degrees and is typically used, for example, in the production of LED strips.











Product name Support type Product series voltage(V) Maximum working power

4000k,RA-80

Light efficiency@1W(lm/w)

4000k,RA-70

Light efficiency@1W(lm/w)
EMC3030-TH series TH series TH-Ⅰ 6 1.5 173 183
TH-Ⅱ 3
6		 1.5 184 192
TH-Ⅲ 6 1.5 193 202



Feature of SMD LED Chip



Place of Origin Zhejiang, China
Color Temperature(CCT) WW:2700-3000K; NW:4000-4500K; PW:6000-6500K
Input Voltage(V) 30-34V;36-38V;45-48V;90-100V
Type SMD LED
Lighting solutions service Lighting and circuitry design, LitePro DLX layout, auto CAD layout
Lifespan (hours) 20000
Working Time (hours) 20000
Product Weight(kg) 0.02
Emitting Color White
Luminous Flux(lm) Custom Made
Power 30W 40W 50W 60W
Viewing Angle(°) 120
Operating Temperature(℃) -105
Storage Temperature(℃) -140
Brand Name Kinglux
Product name COB LED Chip
Our Service Provide Free Sample Service
Circuit Custom Made
Color Custom Made
Current Custom Made
Input Voltage 30-34V;36-38V;45-48V;90-100V
Outline dimension 28*28MM
View Angle 120°
Warranty 5 Years
