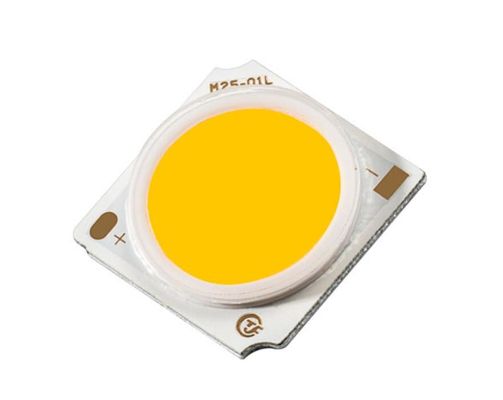

31W Outdoor Decorative COB Light Source Integrated Full Spectrum For LED Floodlight
- Features:
- - 31 W small LES COB LED
- - 3-step MacAdam ellipse
- - LESφ17mm - Size: 19 x 19 mm
- Series:Phoenix PX series
- Radiator lit at 200℃ for 1H without dead lamp;
- Can carry 20Kg pressure immortal lamp;
- The same wattage 90 display finger can reach 80 display finger light effect;
-Certified by LM-80 and EN62471;
- Inverted performance, formal light effect
Typical Applications
• Portable (flashlight, bicycle)
• Uplighters/Downlighters
• Decorative/Entertainment (stage light)
• Bollards/Security/Garden
• Indoor/Outdoor Commercial and Residential Architectural
• Automotive Ext (Stop-Tail-Turn, CHMSL, Width Lamp)
Technical Specifications of Cob Led Chip
1. Good solution for linear light. It perfect achieve the Dot-Free lighting effect even if without any profile or PC cover.
2. Continuous and uniform linear illumination, with soft and elegant light, no glare.
3. Adopt Flip-Chip technology, no dead light risk.
4. Single point's current is small, which provides good heat dispersion, long life span and low luminous decay.
5. More flexible and bendable than the traditional led strip, it has a bending radius of only 5mm, so it can be any shape you want.
Advantages of a CoB LED
Using a single LED can result in simpler design and product as well as providing optical advantages for uniform light and efficient optics. Electrical design is simpler because the CoB LED only requires a single two-wire power supply to the entire array of chips.
Product model
Part No. |
Typical power
Power
(W) |
Color temperature
CCT
(K) |
Explicit finger
CRI |
Luminous flux
TYP
(lm) |
Typical voltage
VF
(V) |
Rated current
IF
(mA) |
Typical light effect
Efficacy
(lm/W) |
M25-01L
LESφ17mm SIZE:19*19mm |
31.5 |
3000-3200K |
90 |
4750 |
35 |
900 |
148 |
| 4000-4300K |
90 |
4890 |
35 |
900 |
152 |
Our Services
1. Your enquiry can be replied in 24 working hours;
2. Well-trained and experienced staffs to answer all your enquires in fluent English;
3. OEM&ODM, we can help you to design and put into product;
4. Protection of your sales area, ideas of design and all your private information.
Q : Can your products’ label, packaging, design be customized?
A : Yes, we offer customization service on these.
Q : What is your monthly production capacity?
A : Our factory production capacity is 50,000 sets of lighting systems per month.
Q : What is your minimum order quantity?
A : Normally MOQ 100pcs, but we also accept small sample order for quality clients.
Q : Can I get a sample for quality check?
A : Yes, we offer sample.
Q : How soon is the lead time?
A : For sample order, 3-5 days. For bulk order, 15-35 days.
Q : What is the lifetime of your lighting systems?
A : Our lighting systems can work at least 3 years, these lighting bulbs should be replaced regularly.
Q : How can you guarantee the quality?
A : Professional product quality inspection team ensures order defective rate; Otherwise, we take full responsibility according to our wholesome after-sales support system.
Q : What are your terms of payment?
A : Payment terms vary among different countries. Generally, 30% T/T in advance, 70% balance before shipment.
