10KV 20kv LED Surge Protector , Thunder Lightning Protection Device Water Resistant

Negotiable
MOQ
Negotiable
Price
10KV 20kv LED Surge Protector , Thunder Lightning Protection Device Water Resistant
Features Gallery Product Description Request A Quote
Features
Specifications
Number Of Pole: 3
Rated Voltage: 275v
Max Discharge Current: 10 A
Uoc: 10KV/20KV
Feature: Led Surge Protection
Application: For Street Light
IP Grade: IP67 Water Resistant
Technology: Thermally Protected Varistor Technology
Highlight:

20kv LED Surge Protector

,

10KV LED Surge Protector

,

Thunder Lightning Protection Device Water Resistant
Basic Infomation
Place of Origin: Zhejiang,China
Brand Name: Kinglux
Certification: CE
Payment & Shipping Terms
Payment Terms: L/C, T/T, Western Union, MoneyGram
Product Description

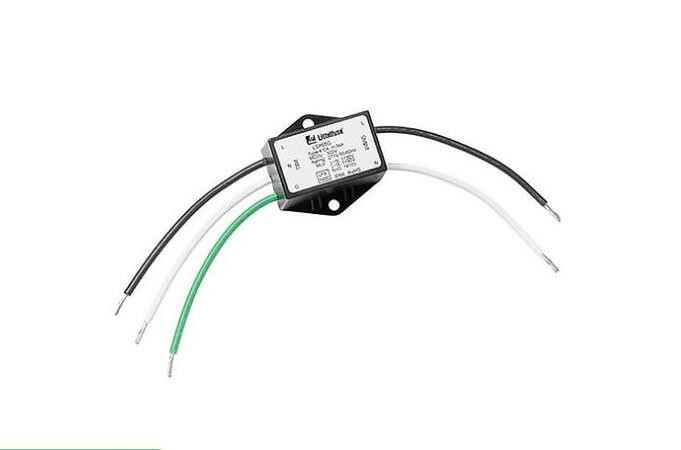

Led Surge Protection For Street Light Thunder Protector 10KV 20kv Water Resistant



Description:



1. High discharge capacity, quick response

2. Low voltage protection level
3. IP67 water resistant
4.Operating temperature range: --40°C…+80°C

This product series are surge protective devices connected between the power supply and the LED street light in serial/shunt connection for protection of LED street light from surge and transient over-voltage caused by the inducted lightning stroke or by internal power systems. Customized products are also available.


Features:

Maximum Lightning Surge Current: 10,000A
Thermally protected varistor technology
IP66 water-proof and dust-proof
Indication wire options
Compact form factor (48x48x30mm) with mounting tabs
UL1449 Type 4 component assemblies recognition
Compliant with IEC 61643-11 Class II and EN61643-11 Type 2* (*Self-declared compliance)



Applications:



Outdoor and commercial LED lighting
Roadway lighting
Traffic lighting
Digital signage
Service entrance lighting
Parking garage/lot lighting
Flood lighting
Tunnel lighting
Street lighting



Packaging and delivery

Packaging Information: Our products are carefully packaged in standard wrapping, with individual cartons for each item. Styropad is placed on each side of the cartons to ensure product protection.

Product Units: Sold individually

Package Dimensions: 55 x 42 x 32 cm

Gross Weight per Package: 0.500 kg







FAQ:



Q 1: What's your rated breaking capacity range?

A: We offer DC SPD from 20kA to 60kA, 500VDC, 600VDC, 800VDC, 1000VDC, 1200VDC, 1500VDC.

Q 2: How do you control quality?

A: Firstly, all raw material we selected the high quality one.
Secondly, our professional and skilful workers care every details in handling the producing.
Thirdly, our quality control department specially responsible for quality checking in each process.
Finally, our product strictly follow ISO9001 quality control system, all products must be tested after finished production.

Q 3: About delivery time, how long should I wait before get my order?

A: It depends on your purchase order. It's better we discuss according to your detail plan.

Q 6: Can you help me to select suitable Lightning Arrester?

A: Sure, please send us inquiry and tell us your demand, we have professional team to support you in model selection.

Q 7: Do you provide OEM & ODM service?

A: Yes, we support OEM & ODM. For some items we have MOQ.
For more questions, feel free to send us inquiry.
