Features

Specifications

Rated Voltage: 220V AC

Protection Level: 10KA

Keywords: 5ka 10kv Led Surge Protector SPD For Led Street Light

Outer Casing Protection Grade: IP67

Application: Traffic Signal Lighting

Name: Led Surge Protector SPD

Highlight:

LED Light Surge Protector SPD

Signal Lighting LED Light Surge Protector

Integrated led surge protector

Basic Infomation

Place of Origin: Zhejiang,China

Brand Name: Kinglux

Certification: CE

Payment & Shipping Terms

Payment Terms: L/C, T/T, Western Union, MoneyGram

Gallery

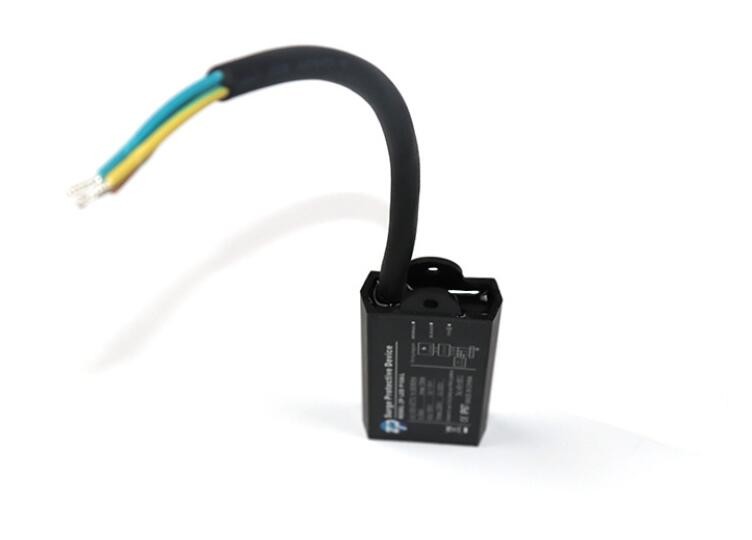

Traffic Signal Lighting LED Light Surge Protector SPD With Integrated Surge Protection

Product Description

Traffic Signal Lighting Led Surge Protector SPD With Integrated Surge Protection

1. Introduction

This product series are surge protective devices connected between the power supply and the LED street light in serial/shunt connection for protection of LED street light from surge and transient over-voltage caused by the inducted lightning stroke or by internal power systems. Customized products are also available.

2. Electrical parameters

Type		Led Surge Protector
Rated voltage		220V AC
Max.Continuous voltage	Uc	275V AC
Norminal discharge current(8/20μs)	In	5KA
Max. discharge current (8/20μs)	Imax	10KA
Nominal discharge voltage	Vn	10kV
Maximum discharge voltage	Vmax	20kV
Voltage protection level	Up	L-N≤900V,L/N-PE≤1200V
Response time	tA	L-N:≤25ns L/N-PE:≤100ns
Connect type		In series
Nominal AC frequency		50/60HZ
Protected mode		L---N L/N---PE
Voltage drop		≤2%
Size		37×46×93mm
Test standards		IEC 61643-11:2011 Class Ⅱ EN 61643-11:2012 Type 2
Outer casing protection grade		IP67
Rated current	I	2A

3.Applications of led light surge protector:

Flood Lighting Systems: Extend the lifespan of LED floodlights for large area illumination with our surge protectors.
Parking Facility Illumination: Contribute to the protection of parking garage lighting systems with LED surge protectors, ensuring efficiency and functionality.
Roadway Lighting Protection: Maintain LED lights along roadways with surge protectors, critical for operational integrity and damage prevention.
Street Lighting Systems: Ensure resilience in LED streetlights with surge protectors, preventing disruptions and extending infrastructure lifespan.
Traffic Signal Lighting: Promote road safety with LED surge protection for continuous operation of traffic lights, preventing damage from electrical irregularities.

Traffic Signal Lighting LED Light Surge Protector SPD With Integrated Surge Protection 0
