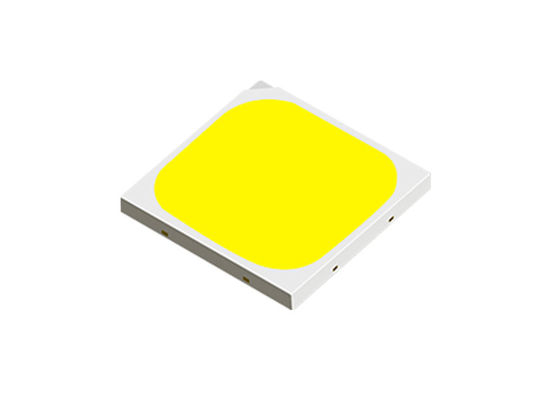

9W High CRI SMD LED Chip 235lm/W 1600 Lumens For Engineering Lighting

Negotiable
MOQ
Negotiable
Price
9W High CRI SMD LED Chip 235lm/W 1600 Lumens For Engineering Lighting
Features Gallery Product Description Request A Quote
Features
Specifications
Single Light Effect: 235lm/W
Maximum Working Power: 9w
Name: High CRI SMD LED Chip
Type: SMD LED
Application: High Bay Light Engineering Lighting
Feature: High Power 、 High Efficiency
Highlight:

SMD LED Chip 235lm/W

,

1600 Lumens SMD LED Chip

,

Engineering led light chip
Basic Infomation
Place of Origin: Zhejiang,China
Brand Name: Kinglux
Certification: CE
Model Number: 7070-TH
Payment & Shipping Terms
Payment Terms: L/C, T/T, Western Union, MoneyGram
Product Description

9w High CRI SMD LED Chip 235lm/W 1600 Lumens For Engineering Lighting



  • Features:

- Smaller luminous surface allows for higher central illumination
- Different power versions, a single optical output of 800-1600 lumens
- @2W test, can easily reach the high light efficiency requirements of 235lm/w
- Maximum power 9W, uniform luminous, high light efficiency, high color rendering, can provide different voltage solutions to meet customer needs
- High power and high light efficiency, combined with the reliability of glass lens use product, life light efficiency to achieve the best effect- Smaller luminous surface area for higher lumen concenration
- Different watts options , 800-1600 lm by only 1 led chip
- When tested by @2W, it can easily reach to 235Lm/W
- Max power 9W, better distributed light , high efficiency, high CRI , can provide different voltage
solutions to meet customer requirements
- High power , high efficiency, achieving best result combined with the glass lens



Application
  • Flood Light & Street Light
  • High Bay Light Engineering Lighting
  • Batteries & Solar Panel Applications
  • DC output customized applications



Characteristics And Uses of SMD LED Chip

SMD type LEDs are light sources that have the characteristic of being installed in circuits directly mounted on an electronic board. These circuits are perforated to allow the passage of the electrodes, whose welding is carried out on the lower face of the base. These are components where the electrodes do not protrude downwards, but come out from the sides of the chip. They are characterized by their flat shape: the lower part is welded directly on the electronic board, while the electrical connections are on the side. In this way it is possible to use printed circuits on an insulating base of reduced thickness and to carry out the micro-welding with automated machinery. This type of LED looks like a tiny box with one face from which the light is emitted, the opposite face which acts as a support base, while the remaining side faces are equipped with anode and cathode. In the past they have been used in miniature circuits, such as those of mobile phones, thanks to an ever higher luminous efficiency. Today they are widely used in the production of LED luminaires for general lighting. This type of LED normally has a light output of 120 degrees and is typically used, for example, in the production of LED strips.





Product name Series Voltage class Maximum working power

4000k,RA-80

Efficacy@1W(lm/w)

4000k,RA-70

Efficacy@1W(lm/w)
70-THseries TH-I 12
18
24
48
54		 3 231 251





Feature of SMD LED Chip



Place of Origin Zhejiang, China
Color Temperature(CCT) WW:2700-3000K; NW:4000-4500K; PW:6000-6500K
Input Voltage(V) 30-34V;36-38V;45-48V;90-100V
Type SMD LED
Lighting solutions service Lighting and circuitry design, LitePro DLX layout, auto CAD layout
Lifespan (hours) 20000
Working Time (hours) 20000
Product Weight(kg) 0.02
Emitting Color White
Luminous Flux(lm) Custom Made
Power 30W 40W 50W 60W
Viewing Angle(°) 120
Operating Temperature(℃) -105
Storage Temperature(℃) -140
Brand Name Kinglux
Product name COB LED Chip
Our Service Provide Free Sample Service
Circuit Custom Made
Color Custom Made
Current Custom Made
Input Voltage 30-34V;36-38V;45-48V;90-100V
Outline dimension 28*28MM
View Angle 120°
Warranty 5 Years

FAQ

Q1: Do you supply OEM,ODM service?
A1: YES,absolutely it can be realized.Learnew focus on OEM & ODM service more than 7 years.
Q2: All the pictures are real photo?
A2: Yes, the pictures of all products on this page are 100% real shoot by us.
Q3: How can I get a quotation from you?
A3: Please kindly leave us messages about your needs,including products parameters, application, you contact way and quantity,our professional team will reply you in one hour here.
Q4: Is there any discount for bulk order?
A4: Yes, if you need bulk order or you want customized products, we can provide wholesale price. Be our fans on alibaba or add learnew opto to “my favorite stores”, you will always get our discount and coupon information at the first time.
Q5: Do you support drop shipping and how much is the shipping cost?
A5: Yes, we support drop shipping. You should leave the receiver's information when you place the order, then we will send the goods according the address you have left. The shipping cost are based on your order's volume and weight, you can check on alibaba or ask our team.
Q6: How to place an order?
A6: You can check the shipping cost and discount information online, and place order directly on Alibaba. Or you can contact us for the order details, we will reply you in mins.
Q7: What payment terms are available?
A7: T/T,PayPal, Western Union and Secure Payment.
Q8: What about the lead time?
A8: It depends on the order quantity. In general, lead time is about 10-15 working days. For samples in standard, the delivery could be 3 days.
