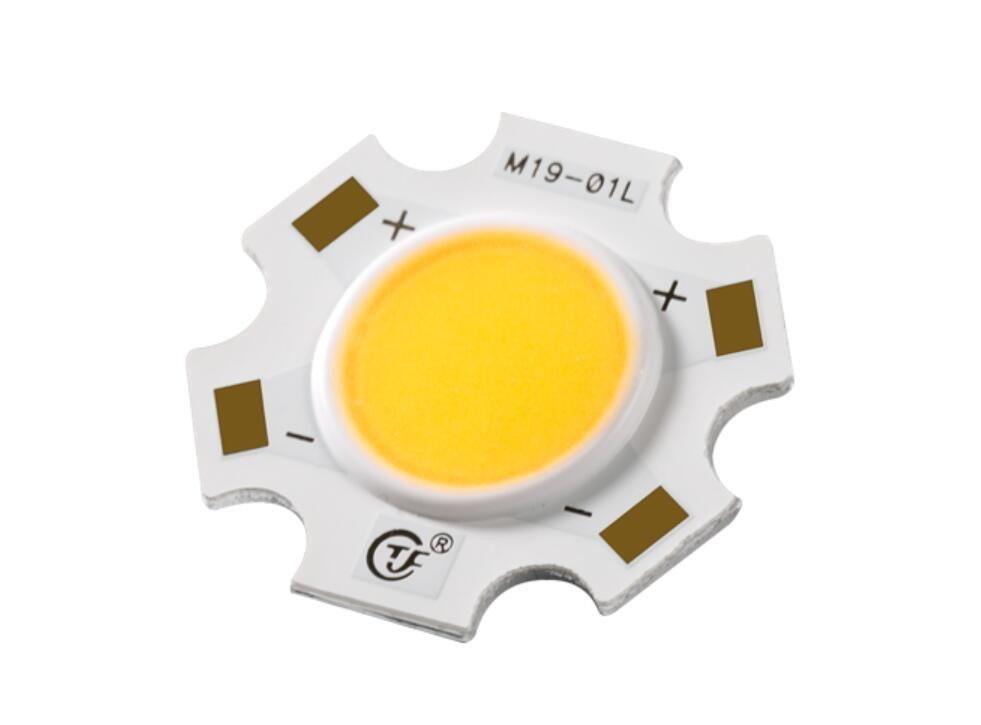

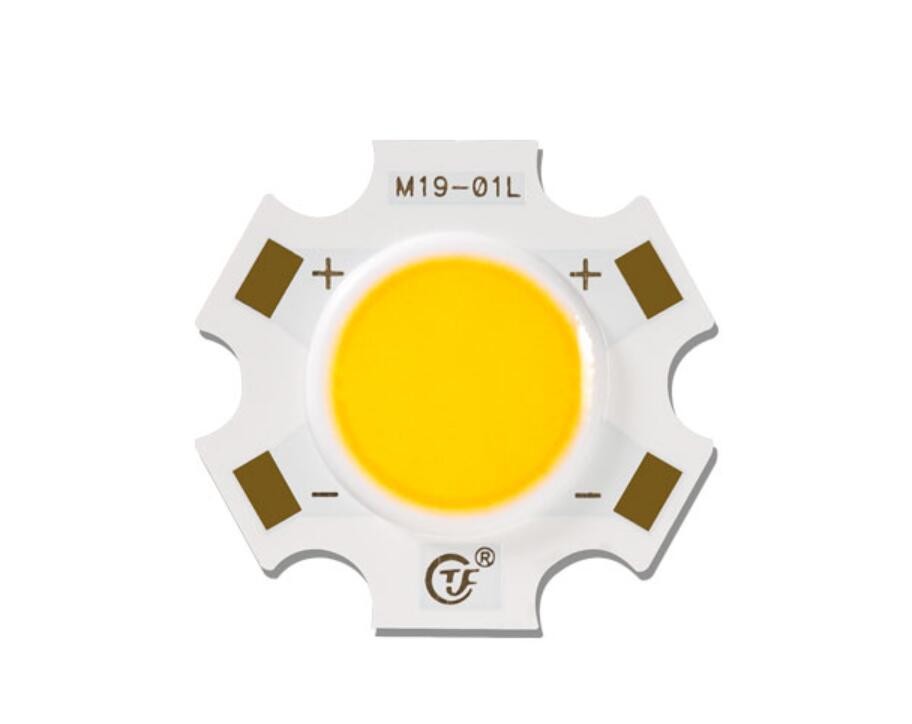

320mA Industry Lighting COB LED Chip 6000K Dimmable High Visibility
-Fluorescent powder near-field distribution technology, clear and stable light color;
-Standardization or customization of light sources to meet the needs of different lighting fixtures
-High visibility, higher light efficiency;
-The near-field distribution of fluorescent powder greatly reduces the thermal resistance of the light source;
-Optical control, achieving precise optical control;
-Certified by LM-80 and EN62471;
Technical Specifications of Cob Led Chip
1. Good solution for linear light. It perfect achieve the Dot-Free lighting effect even if without any profile or PC cover.
2. Continuous and uniform linear illumination, with soft and elegant light, no glare.
3. Adopt Flip-Chip technology, no dead light risk.
4. Single point's current is small, which provides good heat dispersion, long life span and low luminous decay.
5. More flexible and bendable than the traditional led strip, it has a bending radius of only 5mm, so it can be any shape you want.
Advantages of a CoB LED
Using a single LED can result in simpler design and product as well as providing optical advantages for uniform light and efficient optics. Electrical design is simpler because the CoB LED only requires a single two-wire power supply to the entire array of chips.
Part No. | Power (W) |
CCT (K) |
CRI | TYP (lm) |
VF (V) |
IF (mA) |
Efficacy (lm/W) |
M19-01L LESφ11mm SIZE:19.1*18.2mm |
3 | 3000 | 80 | 420 | 9.6 | 320 | 137 |
4000 | 80 | 442 | 9.6 | 320 | 144 | ||
6000 | 80 | 448 | 9.6 | 320 | 146 | ||
5 | 3000 | 80 | 695 | 16 | 320 | 136 | |
4000 | 80 | 735 | 16 | 320 | 144 | ||
6000 | 80 | 741 | 16 | 320 | 145 | ||
10 | 3000 | 80 | 1385 | 32 | 320 | 135 | |
4000 | 80 | 1446 | 32 | 320 | 141 | ||
6000 | 80 | 1485 | 32 | 320 | 145 | ||
12 | 3000 | 80 | 1646 | 38.4 | 320 | 134 | |
4000 | 80 | 1728 | 38.4 | 320 | 141 | ||
6000 | 80 | 1776 | 38.4 | 320 | 145 |
Packaging and delivery
Packaging Details | Safety package for led cob 5w full spectrum |
Anti-static plate in deal with empty space. | |
One plate with 100 units,and one box with 50000 units. | |
Selling Units: | Multiple of 1000 |
Package size per batch: | 20X20X20 cm |
Gross weight per batch: | 2.000 kg |
