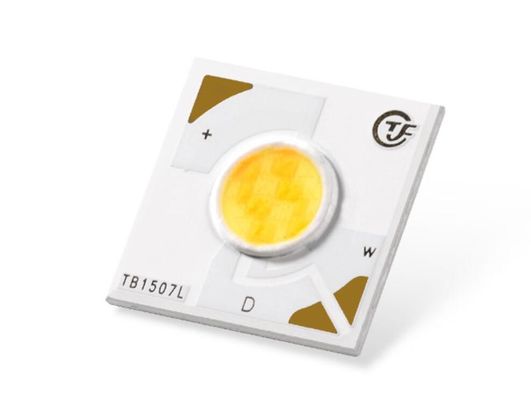

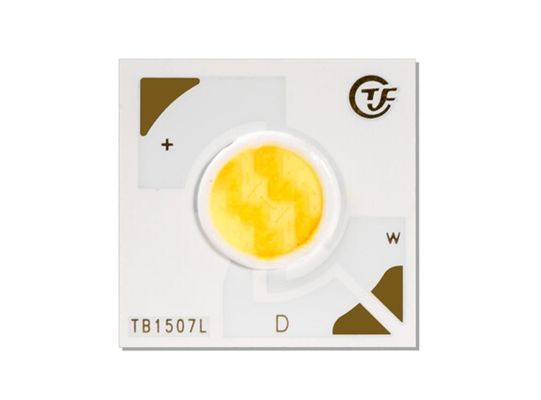

90Ra Dual Color Temperature Cob Lamp Beads TB1511L Intelligent Dimming
Features:
Technical Specifications of Cob Led Chip
-2700K-6000K intelligent endless dimming and color adjustment;
-90Ra main push, with various Ra options available;
-Dimming products, with the same power for better light efficiency and the same emitting surface for better light power;
-Advanced packaging technology, replacing CSP and CSC packaging;
-Secondary internal optics of the light source, with a more optimized optical layout;
- 120LPW@90Ra 2700K universal solution, high light quality;
-Certified through LM-80 and EN62471
Specifications:
1. Good solution for linear light. It perfect achieve the Dot-Free lighting effect even if without any profile or PC cover.
2. Continuous and uniform linear illumination, with soft and elegant light, no glare.
3. Adopt Flip-Chip technology, no dead light risk.
4. Single point's current is small, which provides good heat dispersion, long life span and low luminous decay.
5. More flexible and bendable than the traditional led strip, it has a bending radius of only 5mm, so it can be any shape you want.
Advantages of a CoB LED
Using a single LED can result in simpler design and product as well as providing optical advantages for uniform light and efficient optics. Electrical design is simpler because the CoB LED only requires a single two-wire power supply to the entire array of chips.
Part No. | Power (W) |
CCT (K) |
CRI | Max (lm) |
VF (V) |
IF (mA) |
Efficacy (lm/W) |
TB1511L LESφ11mm SIZE:15.8*15.8mm |
16 | 2700 | 90 | 1664 | 36.5 | 480 | 95 |
6000 | 90 | 1927 | 36.5 | 480 | 110 | ||
20 | 2700 | 90 | 2190 | 36.5 | 600 | 100 | |
6000 | 90 | 2409 | 36.5 | 600 | 110 |
Packaging and delivery
Packaging Details | Safety package for led cob 5w full spectrum |
Anti-static plate in deal with empty space. | |
One plate with 100 units,and one box with 50000 units. | |
Selling Units: | Multiple of 1000 |
Package size per batch: | 20X20X20 cm |
Gross weight per batch: | 2.000 kg |
