Name: PCT3030-TH SMD LED Chip With White Emitting Color 30W 40W 50W
Brand: Ningbo Kinglux Lighting Co., Ltd
SKU: PCT3030-TH
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Features: 1W

Single Light Effect: > 206lm/w

Maximum Working Power: 1.2w

Name: High Light Efficiency TH Series

Input Voltage(V): 30-34V;36-38V;45-48V;90-100V

Type: SMD LED

Emitting Color: White

Power: 30W 40W 50W 60W

Highlight:

SMD LED Chip 30W

SMD LED Chip 40W

White 50w led smd chip

Basic Infomation

Place of Origin: Zhejiang,China

Brand Name: Kinglux

Certification: CE

Model Number: PCT3030-TH

Payment & Shipping Terms

Payment Terms: L/C, T/T, Western Union, MoneyGram

Gallery

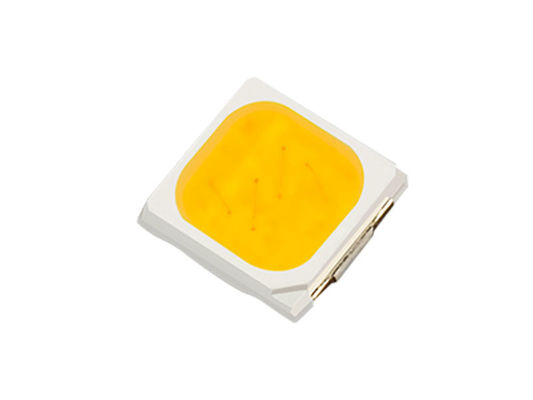

PCT3030-TH SMD LED Chip With White Emitting Color 30W 40W 50W

Product Description

PCT3030-TH SMD LED Chip High Light Efficiency TH Series 30W 40W 50W 60W

Features:- 1W single light effect > 206lm/w - Meet the whole lighting effect > 165lm/w - The maximum power of a single chip is 1.2W
Series:High light efficiency TH series

1. Lamp bead voltage batch supply ±0.1V, finished power range can be controlled within ±1%
2. A single LED can be used up to 1.2W with a transient current of 500MA
3. Lamp pearl-effect 180lm/w-210lm/ supply to meet the needs of different gears
4. The whole lighting effect can be improved by 10lm/w without changing any kit
5. 1:1 Replacement of PCT5050 light efficiency grade 190-210lm/w products to meet customers' needs of the whole lamp above 165lm/w

Characteristics And Uses of SMD LED Chip

SMD type LEDs are light sources that have the characteristic of being installed in circuits directly mounted on an electronic board. These circuits are perforated to allow the passage of the electrodes, whose welding is carried out on the lower face of the base. These are components where the electrodes do not protrude downwards, but come out from the sides of the chip. They are characterized by their flat shape: the lower part is welded directly on the electronic board, while the electrical connections are on the side. In this way it is possible to use printed circuits on an insulating base of reduced thickness and to carry out the micro-welding with automated machinery. This type of LED looks like a tiny box with one face from which the light is emitted, the opposite face which acts as a support base, while the remaining side faces are equipped with anode and cathode. In the past they have been used in miniature circuits, such as those of mobile phones, thanks to an ever higher luminous efficiency. Today they are widely used in the production of LED luminaires for general lighting. This type of LED normally has a light output of 120 degrees and is typically used, for example, in the production of LED strips.

Product name	Picture	Product series	Voltage class	Maximum working power	4000k,RA-80 Efficiency@1W(lm/w)	4000k,RA-70 Efficiency@1W(lm/w)
P30-THseries	THseries	TH-Ⅰ	6	1.2	176	187
		TH-Ⅱ	3 6	1.2	185	197
		TH-Ⅲ	6	1.2	194	206

Feature of SMD LED Chip

Place of Origin	Zhejiang, China
Color Temperature(CCT)	WW:2700-3000K; NW:4000-4500K; PW:6000-6500K
Input Voltage(V)	30-34V;36-38V;45-48V;90-100V
Type	SMD LED
Lighting solutions service	Lighting and circuitry design, LitePro DLX layout, auto CAD layout
Lifespan (hours)	20000
Working Time (hours)	20000
Product Weight(kg)	0.02
Emitting Color	White
Luminous Flux(lm)	Custom Made
Power	30W 40W 50W 60W
Viewing Angle(°)	120
Operating Temperature(℃)	-105
Storage Temperature(℃)	-140
Brand Name	Kinglux
Product name	COB LED Chip
Our Service	Provide Free Sample Service
Circuit	Custom Made
Color	Custom Made
Current	Custom Made
Input Voltage	30-34V;36-38V;45-48V;90-100V
Outline dimension	28*28MM
View Angle	120°
Warranty	5 Years

FAQ

Q1: Do you supply OEM,ODM service?

A1: YES,absolutely it can be realized.Learnew focus on OEM & ODM service more than 7 years.

Q2: All the pictures are real photo?

A2: Yes, the pictures of all products on this page are 100% real shoot by us.

Q3: How can I get a quotation from you?

A3: Please kindly leave us messages about your needs,including products parameters, application, you contact way and quantity,our professional team will reply you in one hour here.

Q4: Is there any discount for bulk order?

A4: Yes, if you need bulk order or you want customized products, we can provide wholesale price. Be our fans on alibaba or add learnew opto to “my favorite stores”, you will always get our discount and coupon information at the first time.

Q5: Do you support drop shipping and how much is the shipping cost?

A5: Yes, we support drop shipping. You should leave the receiver's information when you place the order, then we will send the goods according the address you have left. The shipping cost are based on your order's volume and weight, you can check on alibaba or ask our team.

Q6: How to place an order?

A6: You can check the shipping cost and discount information online, and place order directly on Alibaba. Or you can contact us for the order details, we will reply you in mins.

Q7: What payment terms are available?

A7: T/T,PayPal, Western Union and Secure Payment.

Q8: What about the lead time?

A8: It depends on the order quantity. In general, lead time is about 10-15 working days. For samples in standard, the delivery could be 3 days.
