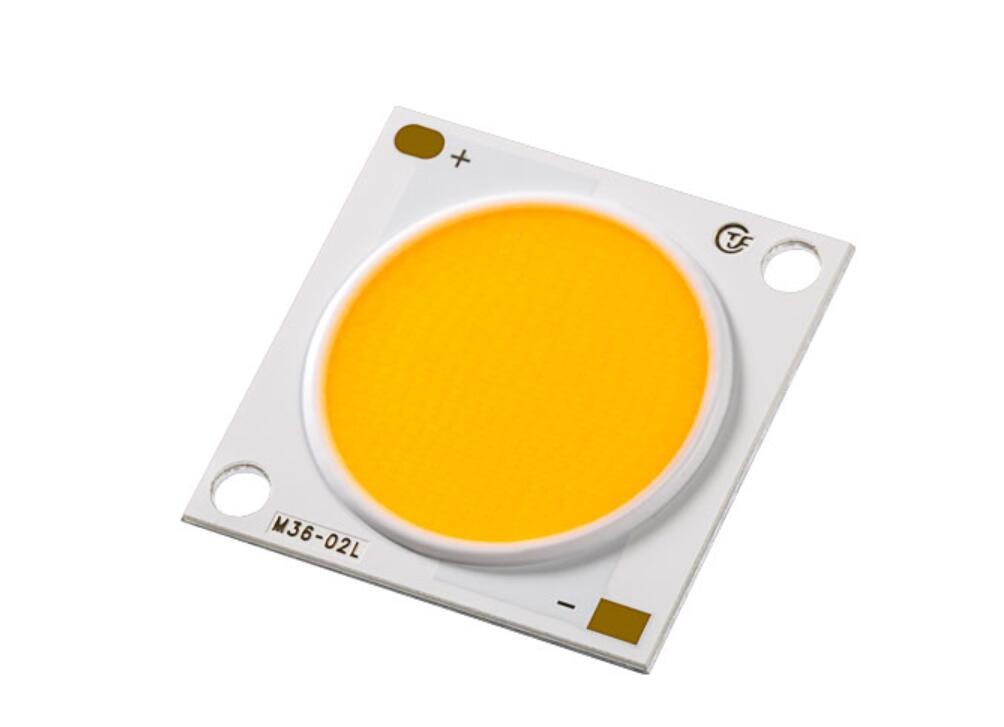

Optical Control 30W COB LED Chip High Visibility For Industry Lighting
- High visibility, higher light efficiency;
- The near-field distribution of fluorescent powder greatly reduces the thermal resistance of the light source;
- Optical control, achieving precise optical control;
- Certified by LM-80 and EN62471;
- Fluorescent powder near-field distribution technology, clear and stable light color;
- Standardization or customization of light sources to meet the needs of different lighting fixtures
Technical Specifications of Cob Led Chip
Light Royal Blue 445NM – 455NM:
Plants that receive plenty of blue light will have strong, healthy stems and leaves.
Full Spectrum 380-780nm:
Full Spectrum of light, for the Vegetation, Pre-flower, Flower, Ripen/Finish. One lamp for all stages of plant growth.
Warm white 3500K:
3500k lights have more warmer tones to the emitted light, that simulates the color the daylight would be in sunset hours, which promotes higher rates of photosynthesis which in return affects plant flowering.
Cold White 6000K:
6500k give out light that resembles the natural light we see during the day, best used on plants that are only starting to grow or already growing, meaning plants that are in their vegetative stages of growth. Also these bulbs are great for seedlings and even plant cloning.
Benefits of CoB LED:
Utilizing a single LED simplifies both design and product, offering optical advantages for uniform light distribution and efficient optics. The electrical design is straightforward, as the CoB LED only necessitates a single two-wire power supply for the entire chip array.
Part No. | Power (W) |
CCT (K) |
CRI | TYP (lm) |
VF (V) |
IF (mA) |
Efficacy (lm/W) |

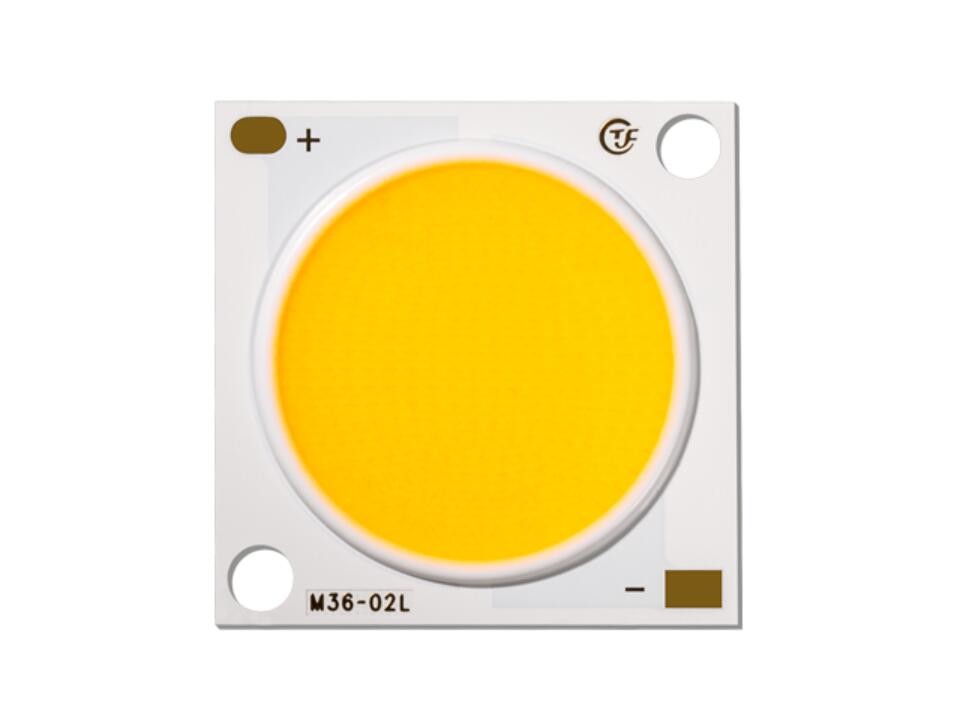

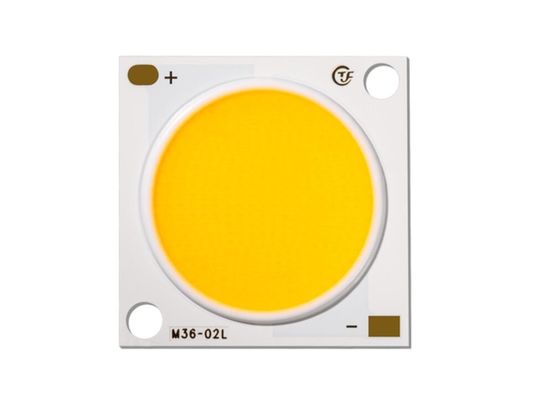

M36-02L LESφ24.5mm SIZE:28*28mm |
30 | 3000 | 80 | 4140 | 32 | 960 | 135 |
4000 | 80 | 4350 | 32 | 960 | 142 | ||
6000 | 80 | 4448 | 32 | 960 | 145 | ||
48 | 3000 | 80 | 6677 | 38.4 | 1280 | 136 | |
4000 | 80 | 6960 | 38.4 | 1280 | 142 | ||
6000 | 80 | 7104 | 38.4 | 1280 | 145 | ||
50 | 3000 | 80 | 6950 | 32 | 1600 | 136 | |
4000 | 80 | 7255 | 32 | 1600 | 142 | ||
6000 | 80 | 7402 | 32 | 1600 | 145 | ||
108 | 3000 | 80 | 14904 | 57.6 | 1920 | 135 | |
4000 | 80 | 15660 | 57.6 | 1920 | 142 | ||
6000 | 80 | 15984 | 57.6 | 1920 | 145 |
Packaging and delivery
Packaging Details | Safety package for led cob 5w full spectrum |
Anti-static plate in deal with empty space. | |
One plate with 100 units,and one box with 50000 units. | |
Selling Units: | Multiple of 1000 |
Package size per batch: | 20X20X20 cm |
Gross weight per batch: | 2.000 kg |
Q1: Can you accept the sample order?
Yes, we can. we welcome sample order to test and check quality.
Q2: Could I put my logo on it?
Of course. The logo can be made according to your requirements once you reached our MOQ.
Q3: What's your packaging?
We have a color box and a carton. Welcome to customize if you need it.
Q4: What's your lead time?
3-7 days for the sample orders in the stock. 25-30 days for mass production.
